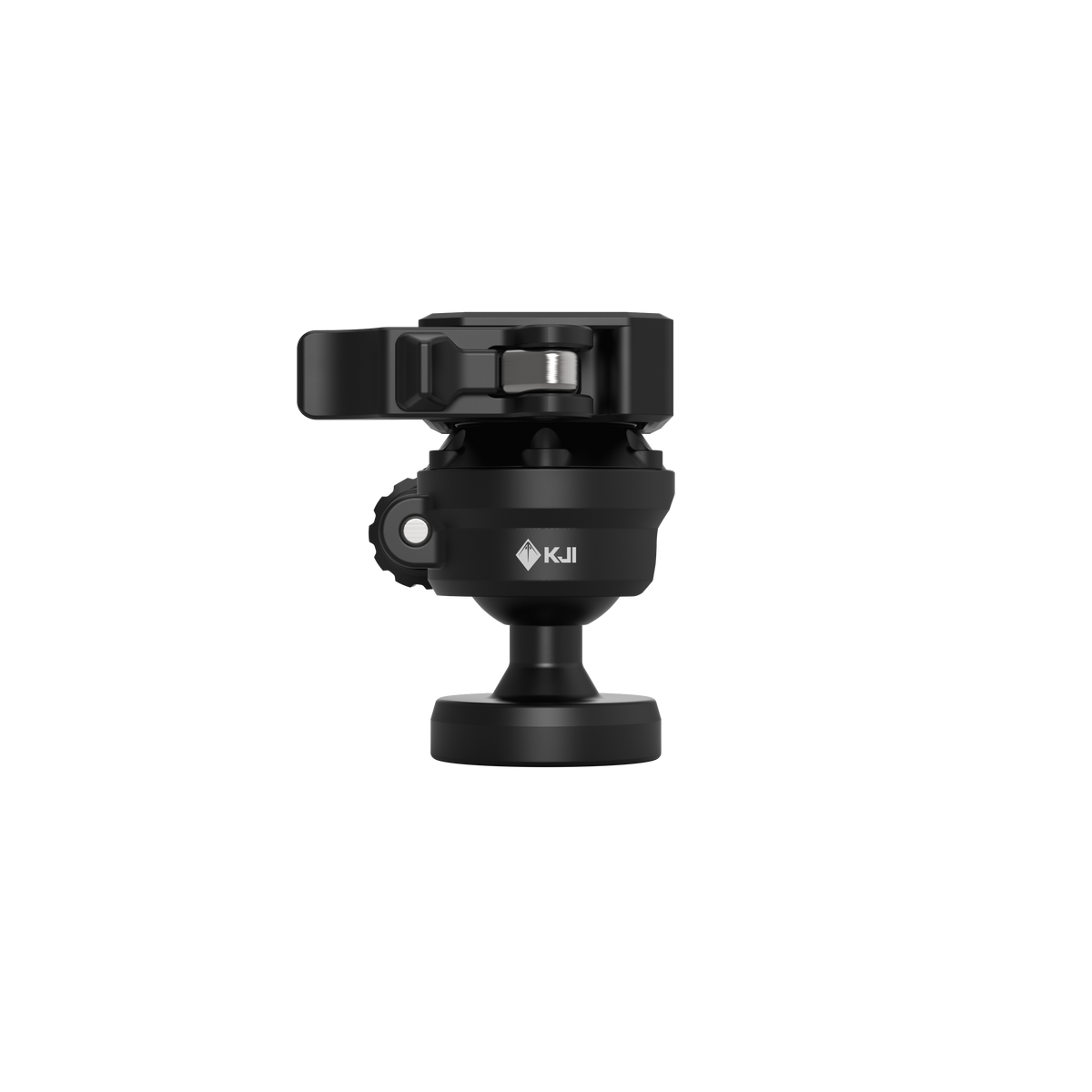

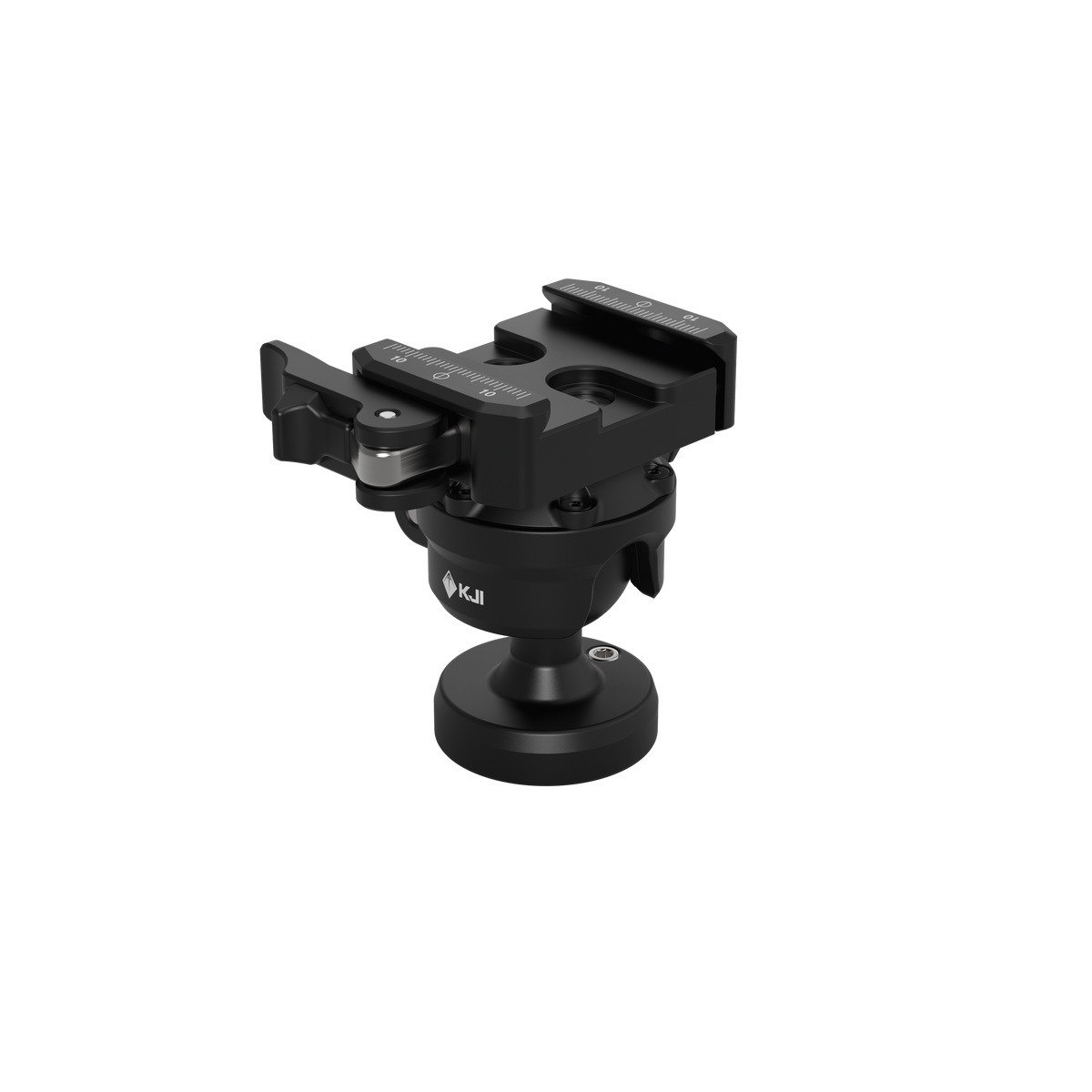

Pathfinder Inverted Ball Head

Description

The KJI Pathfinder 30mm Ball Head is a camera-first, multi-use ball head for photographers, optics users, and rimfire shooters who need fast, precise repositioning from a single compact head. A ball tension knob with a thumb pad controls all axes simultaneously, and the 30mm ball delivers 45 degrees of tilt plus a full 90-degree drop notch for complete positional range. At 8.5 oz. and 2.81 inches tall, it adds minimal weight and height to any setup.

The Arca-Swiss compatible quick-release clamp with lock lever integrates with any standard plate system for fast, secure attachment and removal. A 360-degree panning base handles smooth horizontal sweeps, and a 3/8"-16 threaded brass insert with captured set screw locks reliably onto any compatible tripod or monopod. With a 25 lb. load capacity and construction from 6061-T6 aluminum and 316 stainless steel, the Pathfinder is built for demanding use well beyond its compact footprint.

Included in Package

• Storage Bag

• Manual

Product Downloads

• Product Manual
• Product Specifications

Features

• 30mm Ball (1.18") with 45° Tilt / Front Drop Notch
• 360-Degree Panning Base
• Split Body Design
• Large Clamping Lever

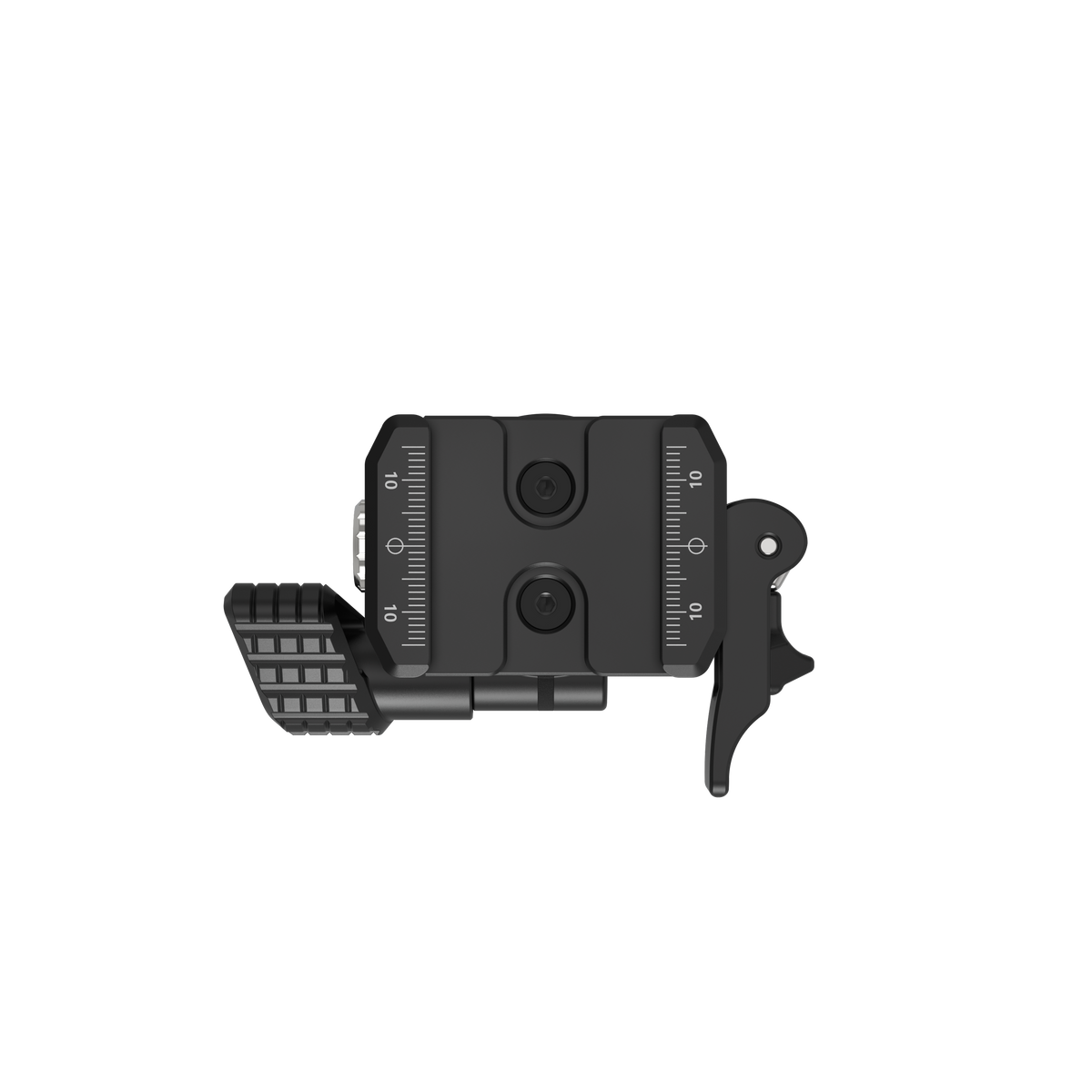

• Hash Marks on Top Plate
• 6061-T6 Aluminum & 316 Stainless Steel Construction
• 3/8"-16 Threaded Brass Insert with Captured Set Screw
• Compact & Lightweight (8.5 oz.)

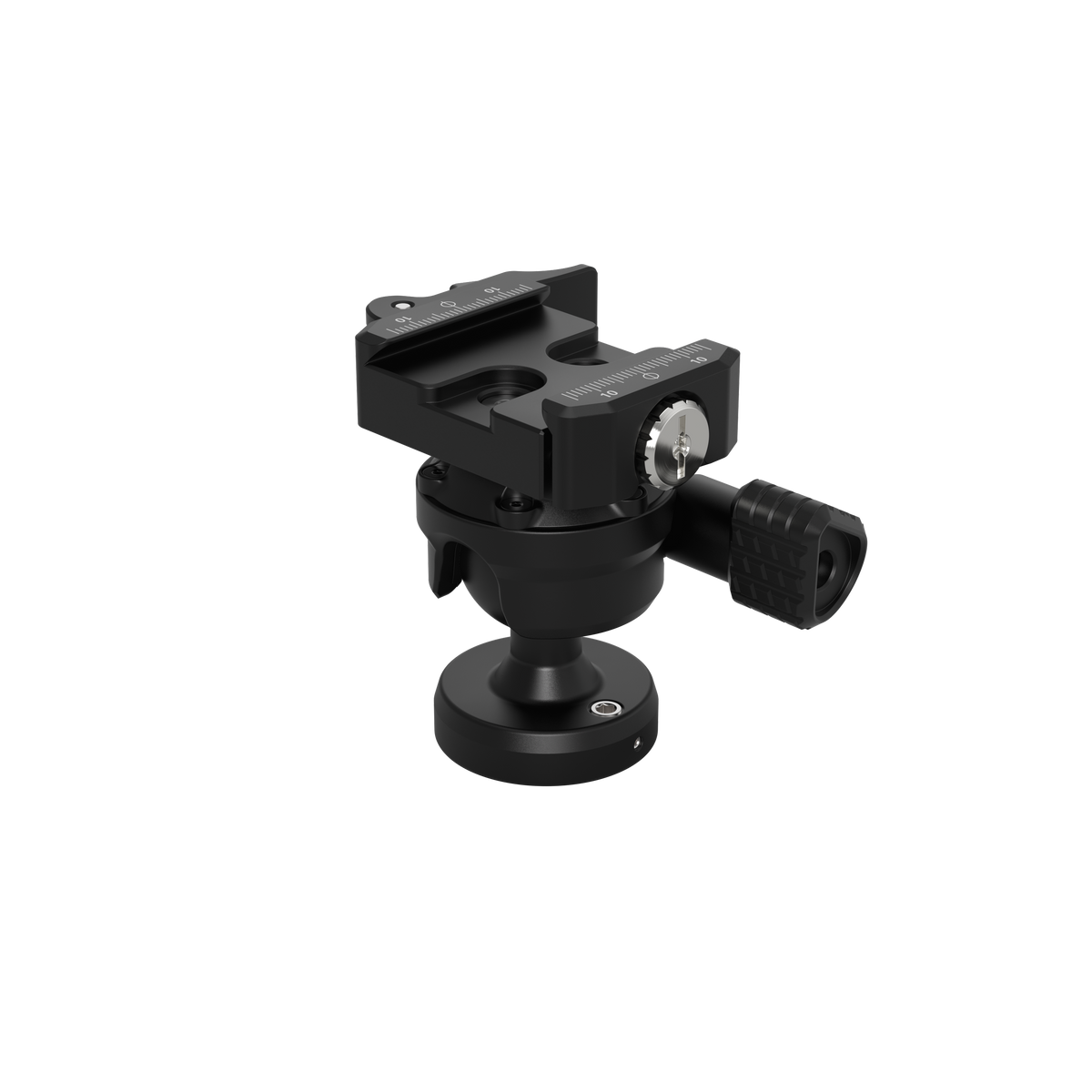

• Single Ball Tension Knob with Thumb Pad
• 25 lb. Load Capacity
• Arca-Swiss Quick-Release Clamp with Lock Lever


EXPORT CONTROL NOTICE: This product is controlled for export and in-country transfer under the Export Administration Regulations (EAR). division contrary to U.S. law prohibited.

Specifications
